MicroSD Memory Card Connector

  • PJS008U-3000-0
  • PJS008U-3000-0
  • PJS008U-3000-0
  • PJS008U-3000-0
  • PJS008U-3000-0
  • PJS008U-3000-0
  • PJS008U-3000-0
PJS008U-3000-0PJS008U-3000-0PJS008U-3000-0PJS008U-3000-0PJS008U-3000-0PJS008U-3000-0PJS008U-3000-0

PJS008U-3000-0

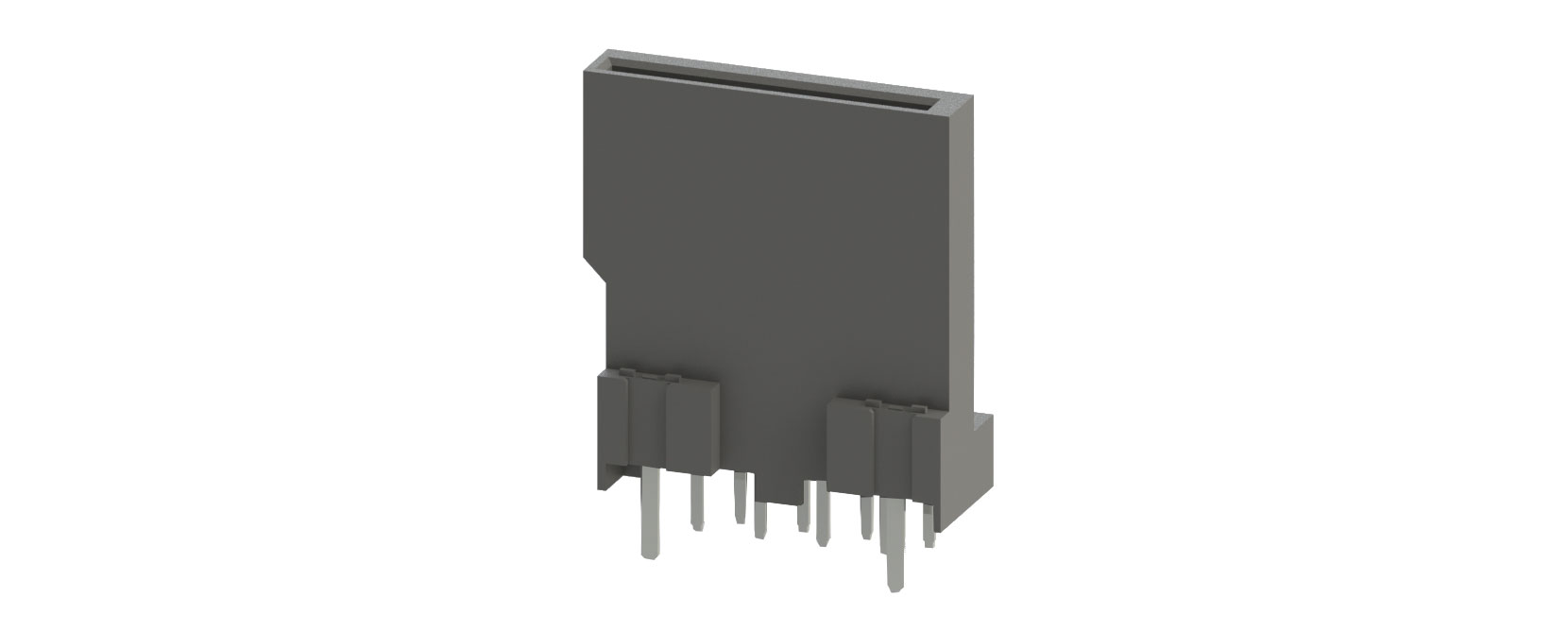

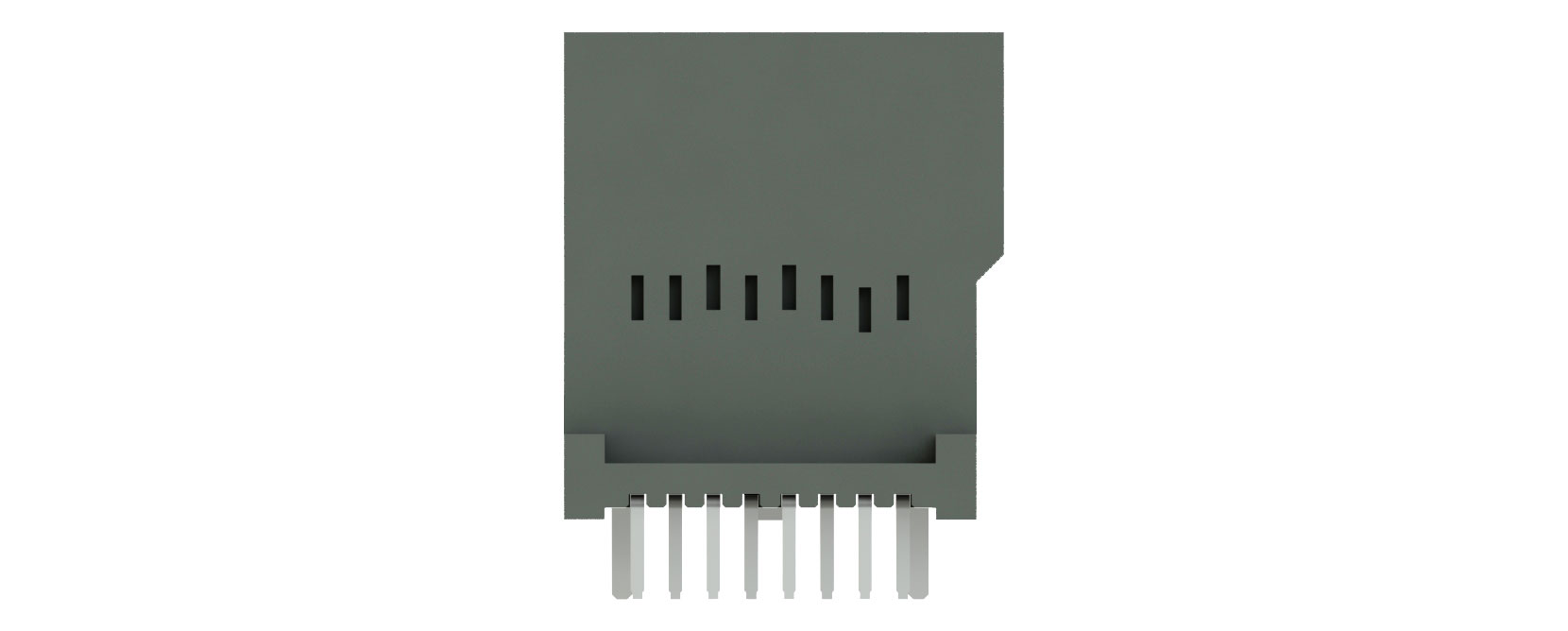

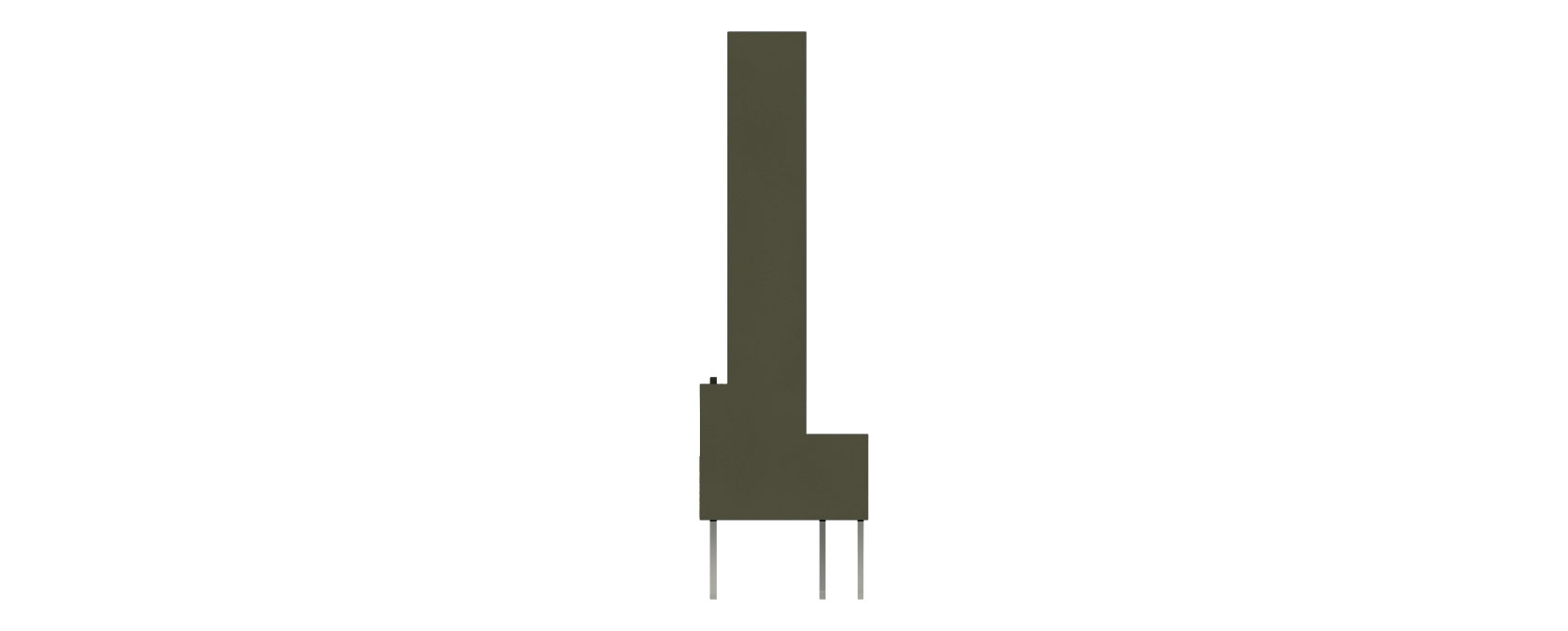

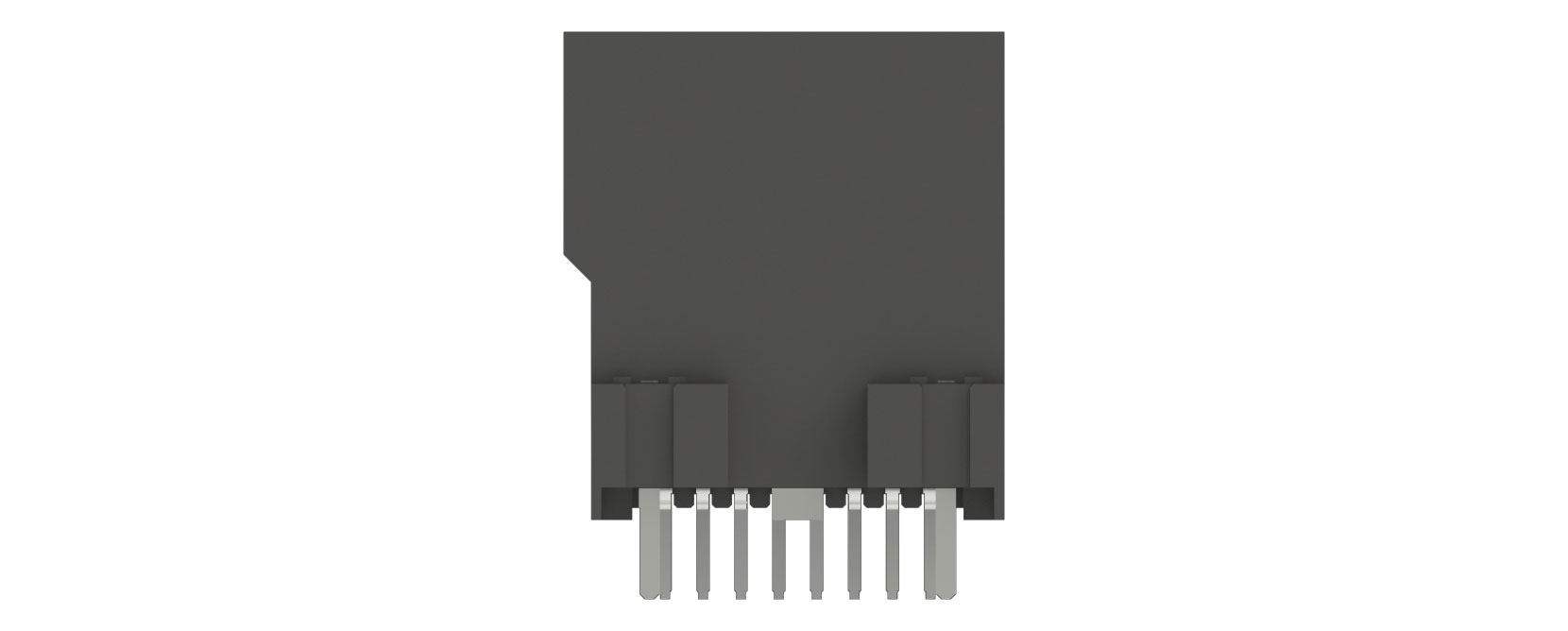

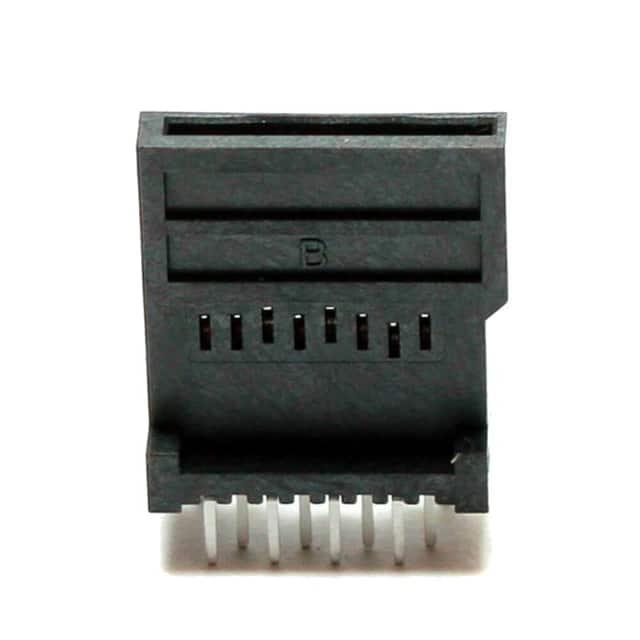

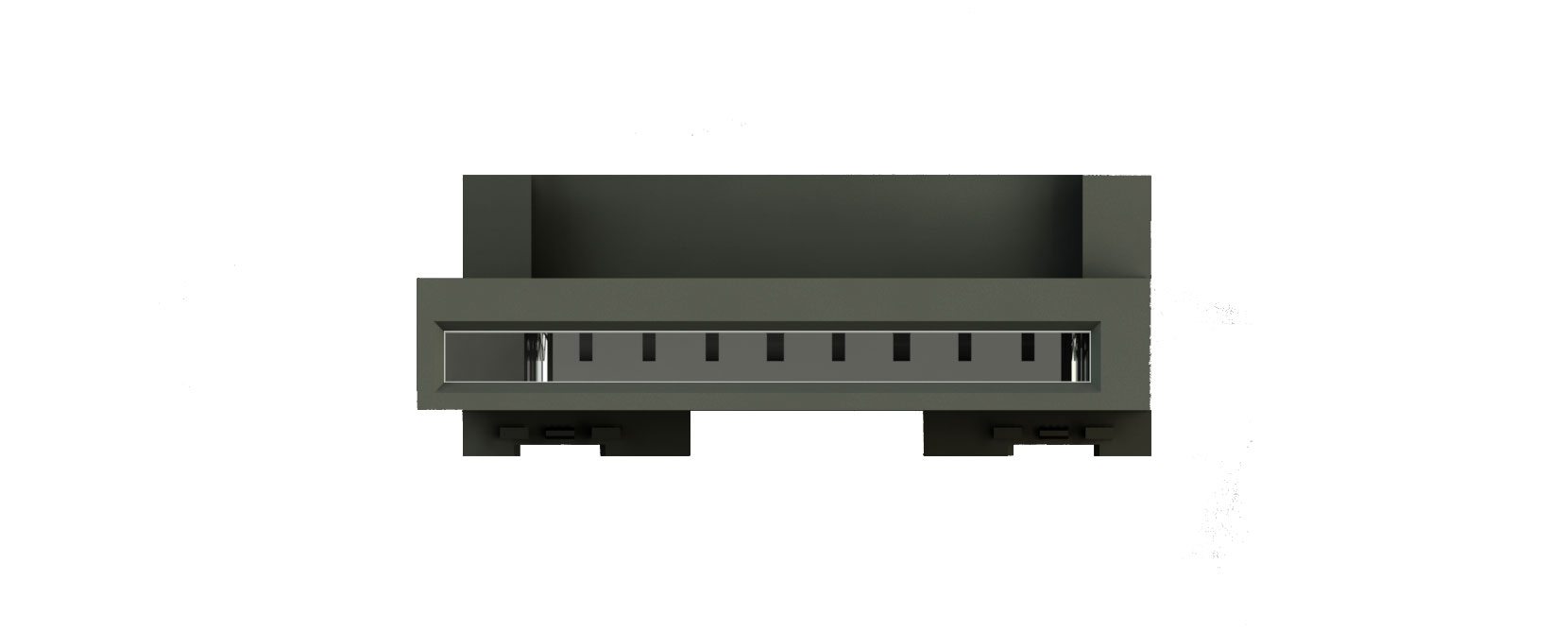

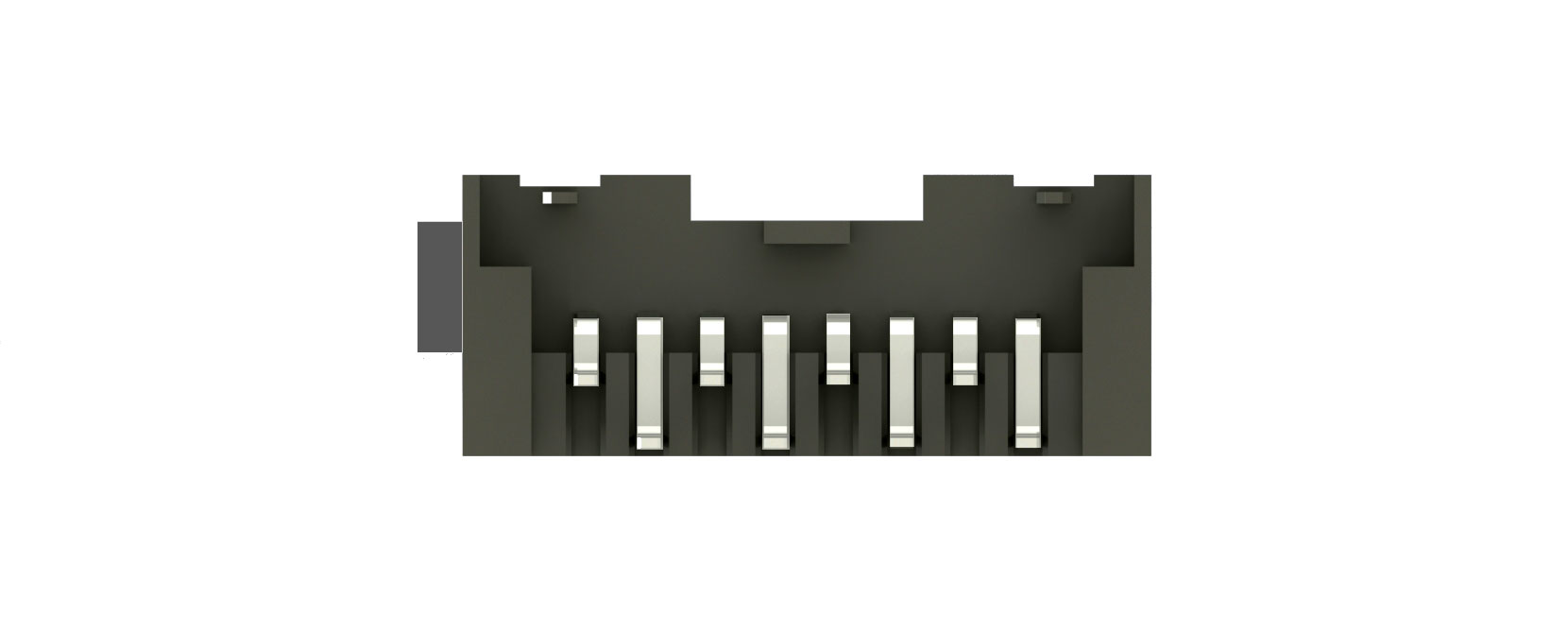

  • Micro SD Card Connector - manual type - 180°
  • 产品描述：PJS008U-3000-0
  • 在线订购

Features

  • PJS008U-3000-0
  • 180° Version
  • Manual insertion/extraction
  • THR Version

Advantages

  • Various removal/unlocking techniques such as manual, push/push or push/lock
  • Mounting version for top and bottom of the PCB

Specifications

General Specification
  • Mating Cycles
    10,000
  • Operating Temperature Range
    -25 °C – 85 °C
  • Plating type, technology and coating thickness
    DIP Terminals: Brass, Plating Ni / Tin
    Contacts: PB, Plating Ni-Au / Tin
  • Product Compliance
    Reach, RoHS
Electrical Specification
  • (Initial) Contact Resistance
    100 Milliohm at 1 mA
  • Insulation Resistance
    1 Megaohm at 250
  • (Dieletric) Withstanding Voltage
    250 pin to shield / ground for 1 minute pin to pin
  • Voltage Rating
    50 V AC rms

2D Model
3D Model
