HSER™ 28+Gbps 2386 Series

2386-12

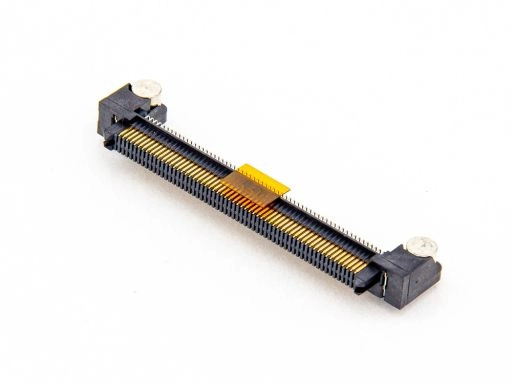

0.8mm Male Right Angle Type
Product description: 2386-12
INQUIRY

56+GbpsPam4
WingTAT's latest 0.8mm Board To Board Connectors high speed connector with Low profile of 6.25mm (0.246") up to 120 Pin Count is adapted for high frequency signal transmission systems.

Support speed rates to 28+Gbps @-3dB

HSER™ 28+Gbps 2386 Series
