PCI Express 8406-C Serie

8406-CxxCxxR

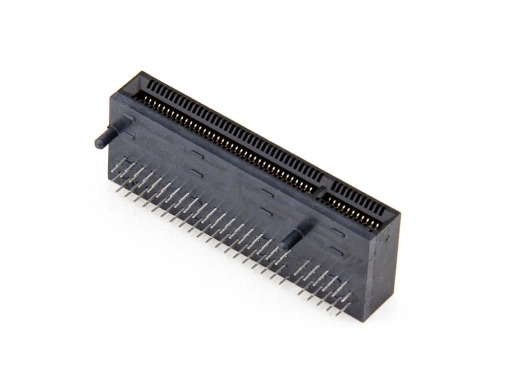

PCI Express (PCIe) Connector, R/angle Type
Product description: 8406-CxxCxxR
INQUIRY

PCI specification extension

*1.0mm pitch

*Provides four slot configurations of PCI-E x1/x4/x8/x16,

36pin, 64pin, 98pin & 164pin

*Support PCI Express 5.0, PCI Express 4.0

*Solder, SMD & Straddle Type available

PCI Express 8406-C Serie

PREVIOUS：8406-CxxCxxS NEXT：8406-CxxCxxDPT-P-G4
