2.54mm EDGE SLOT180°

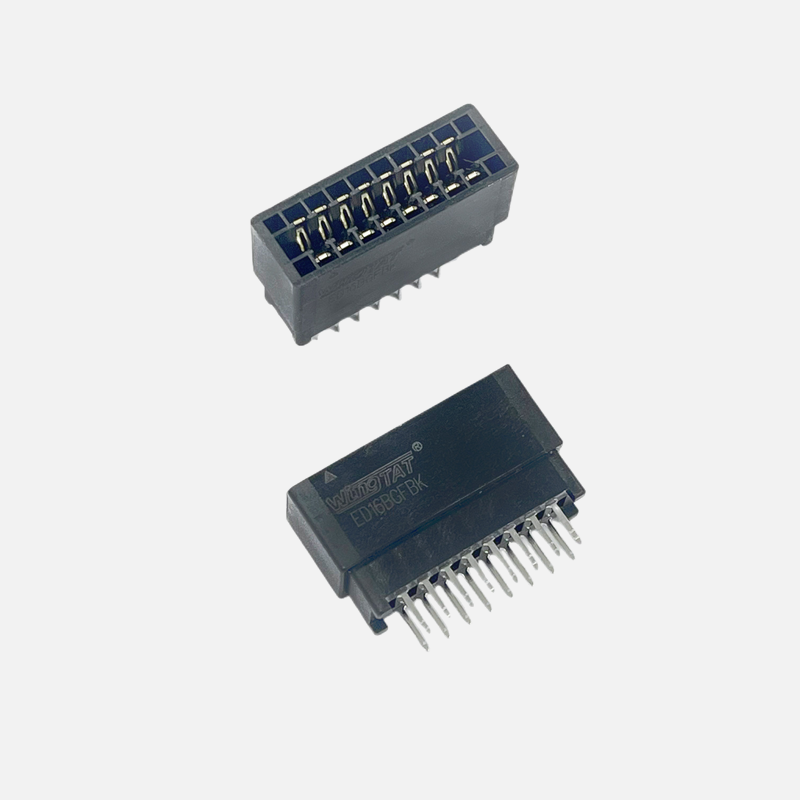

  • ED16BGFBK
ED16BGFBK

ED16BGFBK

  • Connector system:Board to board
  • Product type:ISA SLOT
  • Center line (Pitch):2.54mm
  • PCB mounting direction:Vertical
  • Product description: ISA SLOT
  • INQUIRY
Product Type Feature
Connector System Board to board
Bus Type ISA SLOT
Product Series ED
Configuration Features
Number of Positions 04~128
Pitch 2.54mm
PCB Mount Retention Features 0
PCB Mount Orientation Vertical
Termination Method to PCB Through Hole-Solder
Electrical Characteristics
Operating Voltage(VAC) 500
Contact Features
Contact Material COPPER ALLOY
Contact Mating Area Plating Material Gold
Contact Mating Area Plating Material Thickness(µin) G/F
Contact Current Rating(A max 3
Housing Features
Housing Material PBT
Housing Color Black
Usage Conditions
Operating Temperature Range(℃ -55~125
Download
Drawing(.pdf) Download
Drawing(.dwg) Download
3D_iges or step
