| Product Type Feature | |

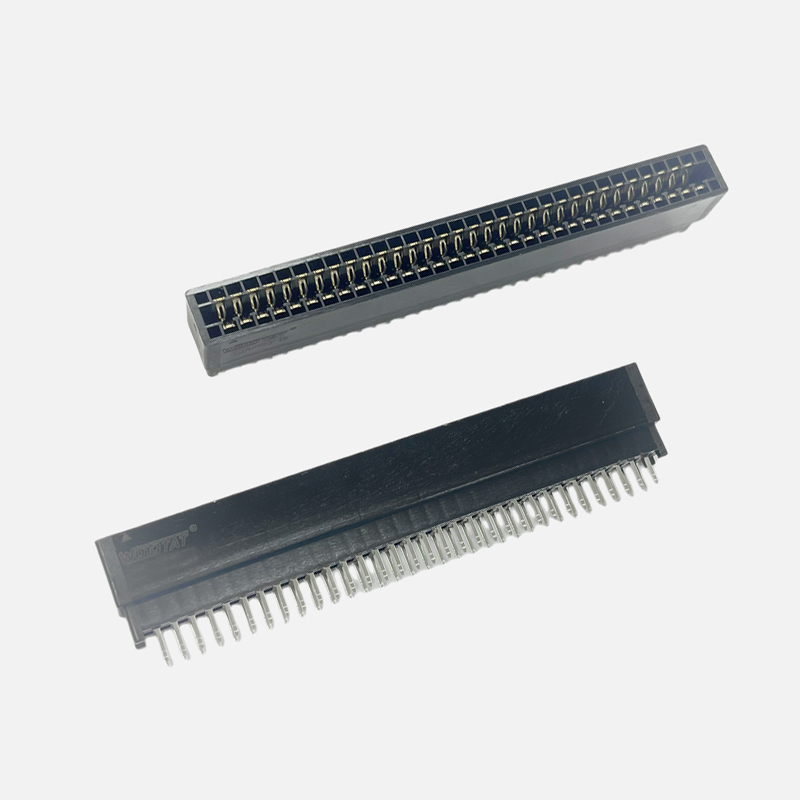

| Connector System | Board to board |
| Bus Type | ISA SLOT |
| Product Series | ED |
| Configuration Features | |
| Number of Positions | 04~128 |
| Pitch | 2.54mm |
| PCB Mount Retention Features | 0 |
| PCB Mount Orientation | Vertical |
| Termination Method to PCB | Through Hole-Solder |
| Electrical Characteristics | |
| Operating Voltage(VAC) | 500 |
| Contact Features | |
| Contact Material |
Phosphor bronze |
| Contact Mating Area Plating Material | Gold |
| Contact Mating Area Plating Material Thickness(µin) | 3U |
| Contact Current Rating（A max） | 3 |
| Housing Features | |
| Housing Material | PBT |
| Housing Color | Black |
| Usage Conditions | |
| Operating Temperature Range（℃） | -55~125 |
| Download | |
| Drawing(.pdf) | Download |
| Drawing(.dwg) | Download |
|
3D_iges or step |
|
